GM50C65EFHIG1 价格：元

Online inquiry
Last Next
Detail


IGBT单管

Voltage level

Part Number

Type

VCES(V)

IC(A)

VCE(sat)(V)@Tvj=25℃

VGEth(V)

Package

Typ.

Max.

Typ.

Max.

电压等级

产品型号

类型

集电极-发射极电压

集电极电流

集电极-发射极饱和电压典型值

集电极-发射极饱和电压最大值

栅极-发射极阈值电压典型值

栅极-发射极阈值电压最大值

封装形式

650V

GM50N65ENSIG1

IGBT

650

50

1.35

1.75

4.0

4.8

TO-247-3L

GM50N65INSIG1

IGBT

650

50

1.35

1.75

4.0

4.8

TO-247-4L

GM50C65EFSIG1

IGBT+FRD

650

50

1.35

1.75

4.0

4.8

TO-247-3L

GM50C65IFSIG1

IGBT+FRD

650

50

1.35

1.75

4.0

4.8

TO-247-4L

GM50N65ENHIG1

IGBT

650

50

1.60

1.75

4.0

4.8

TO-247-3L

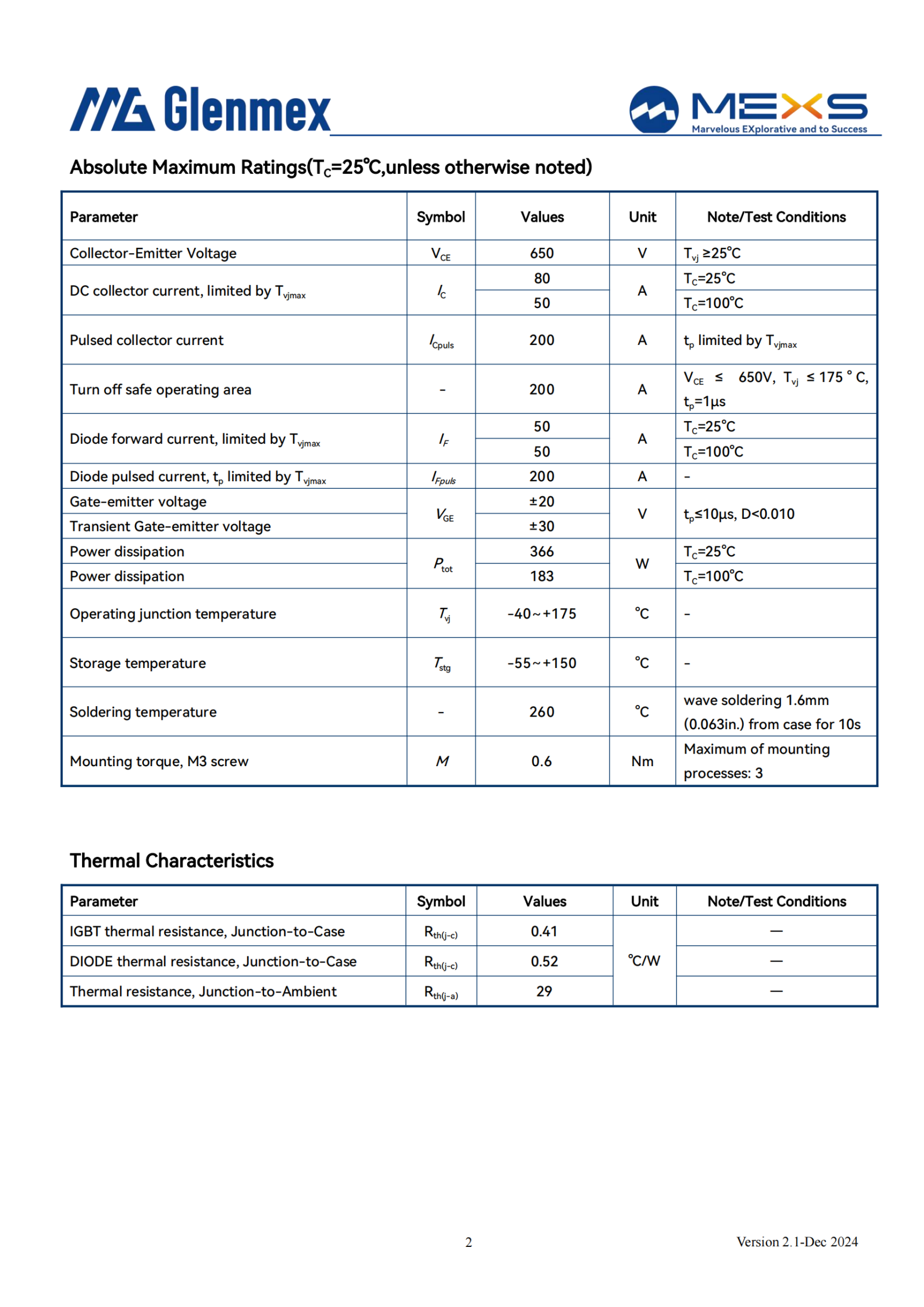

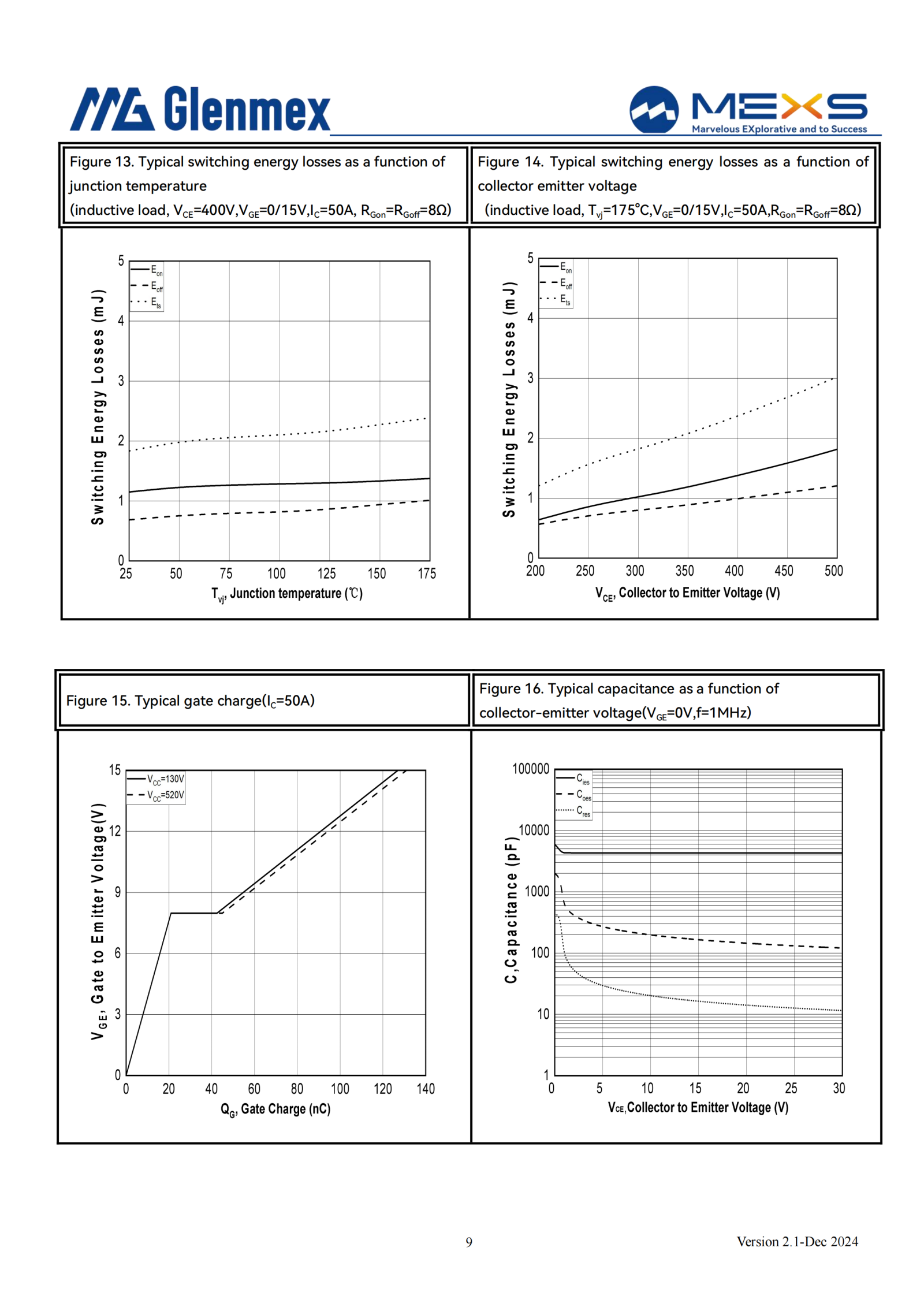

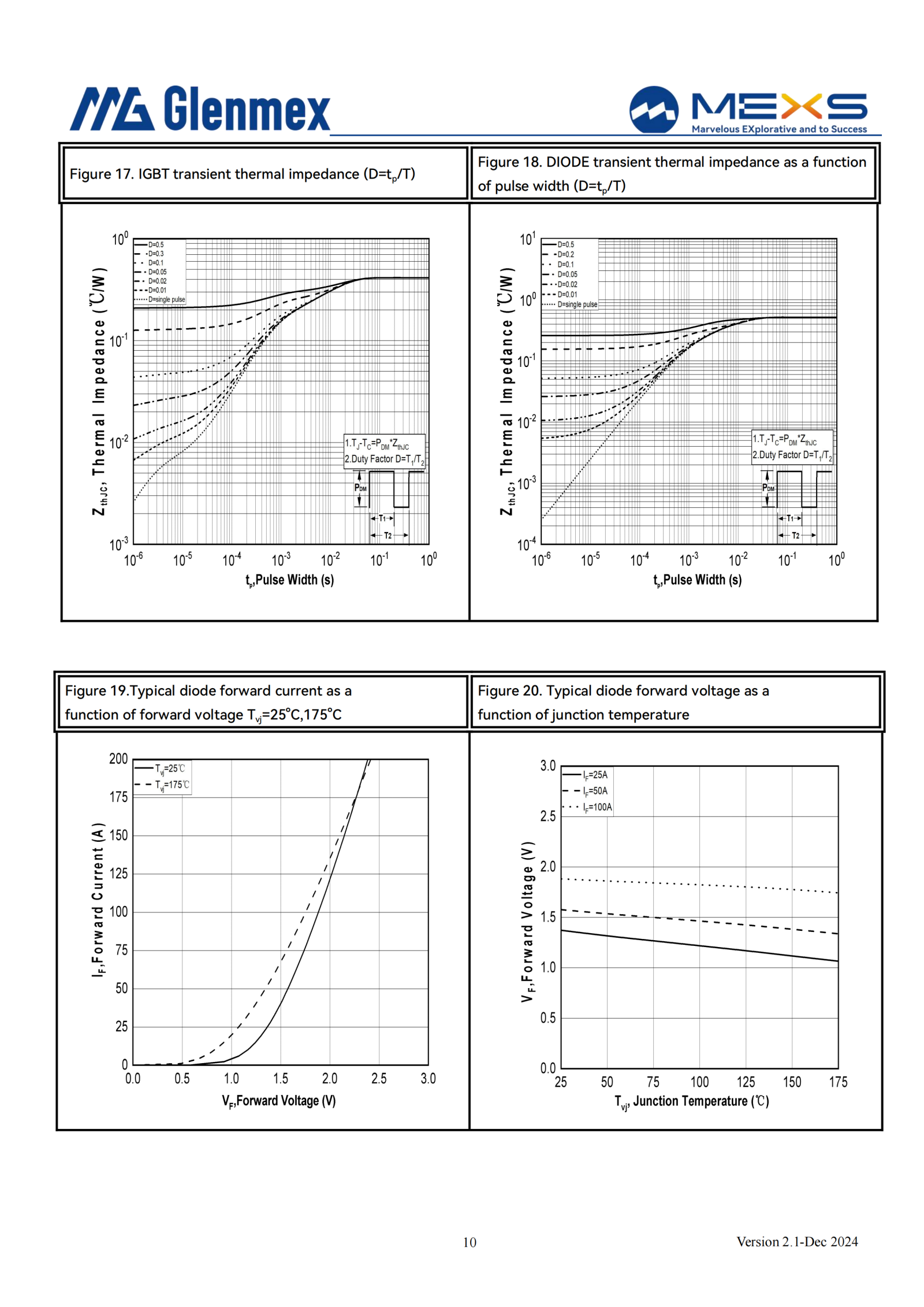

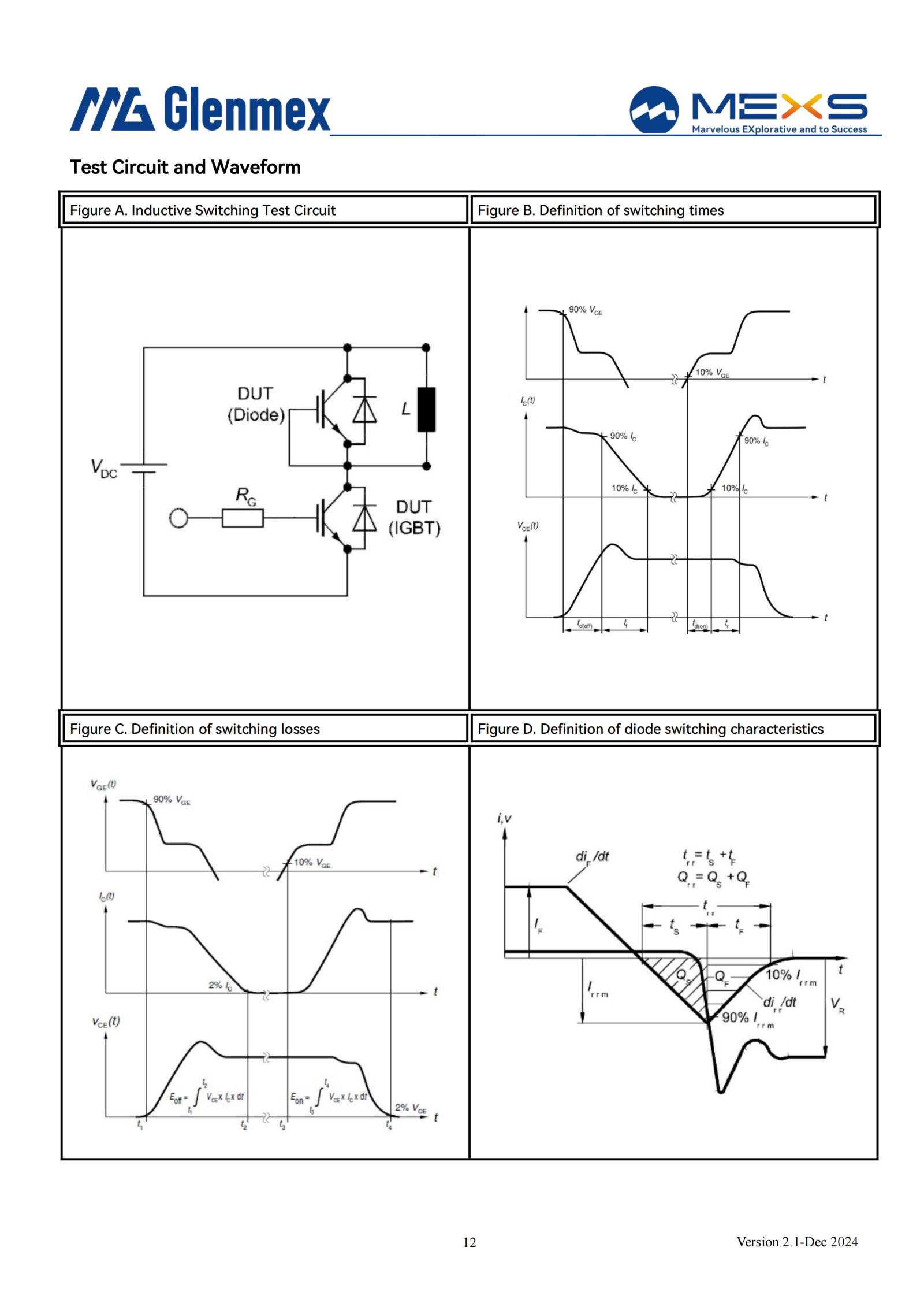

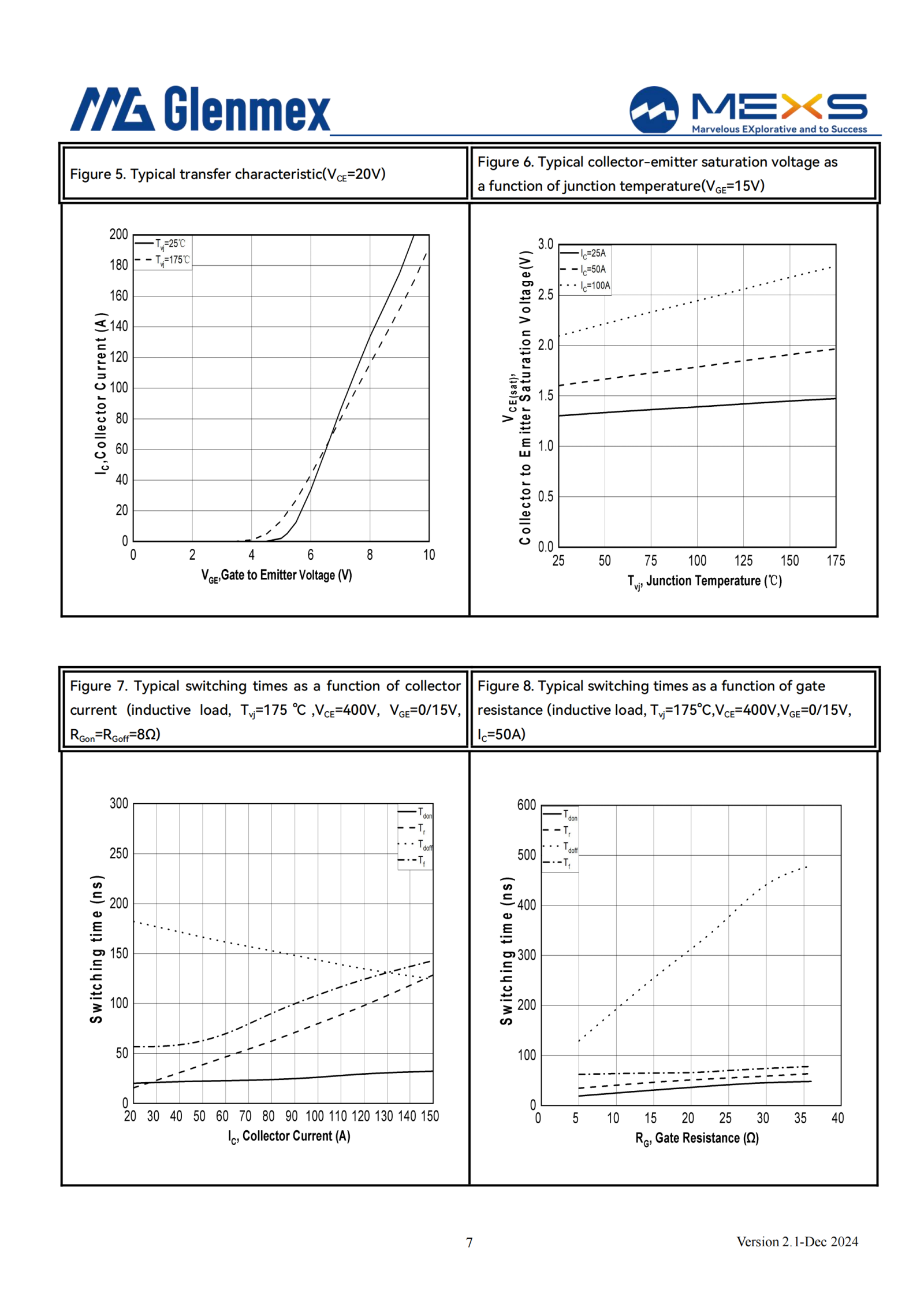

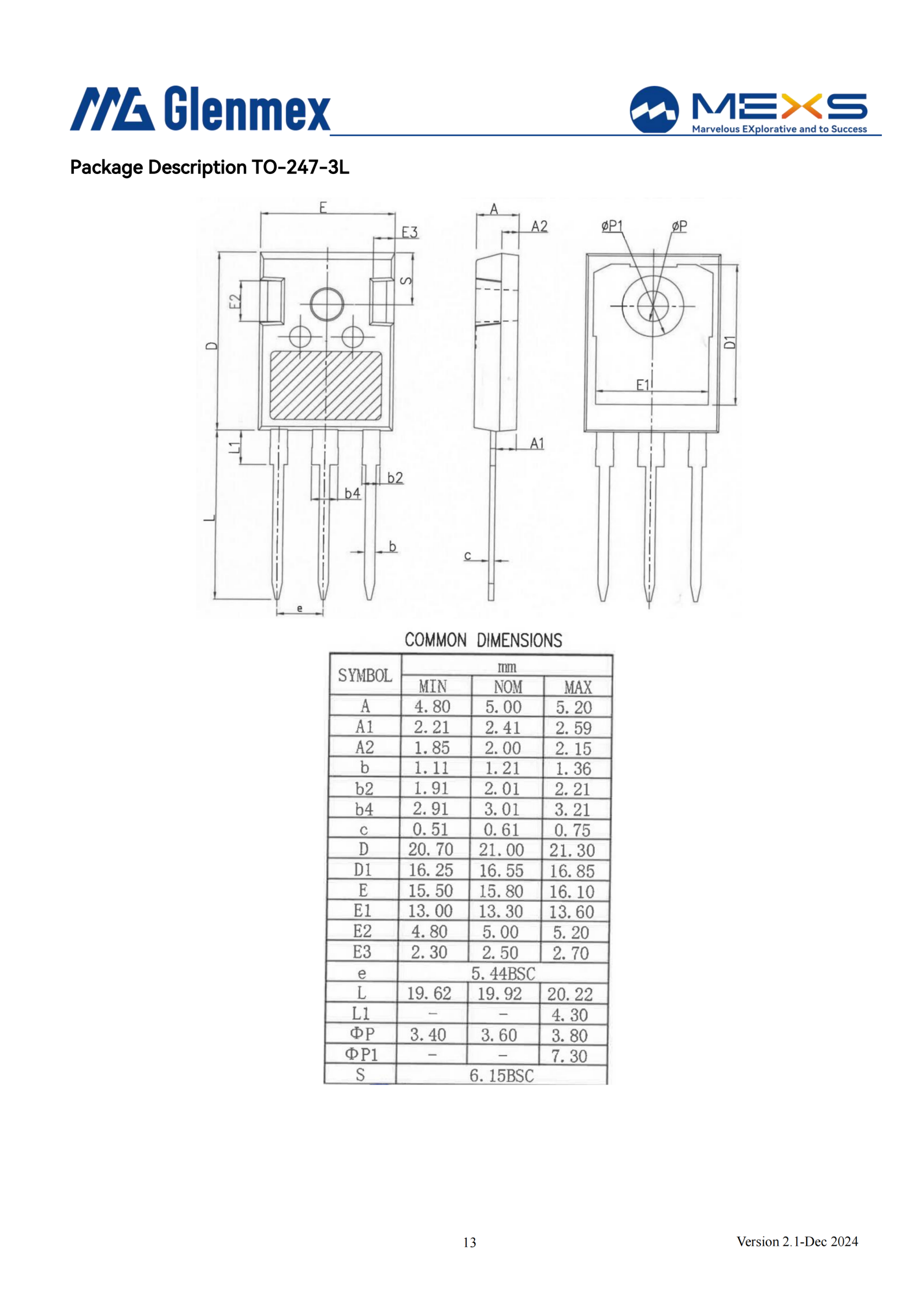

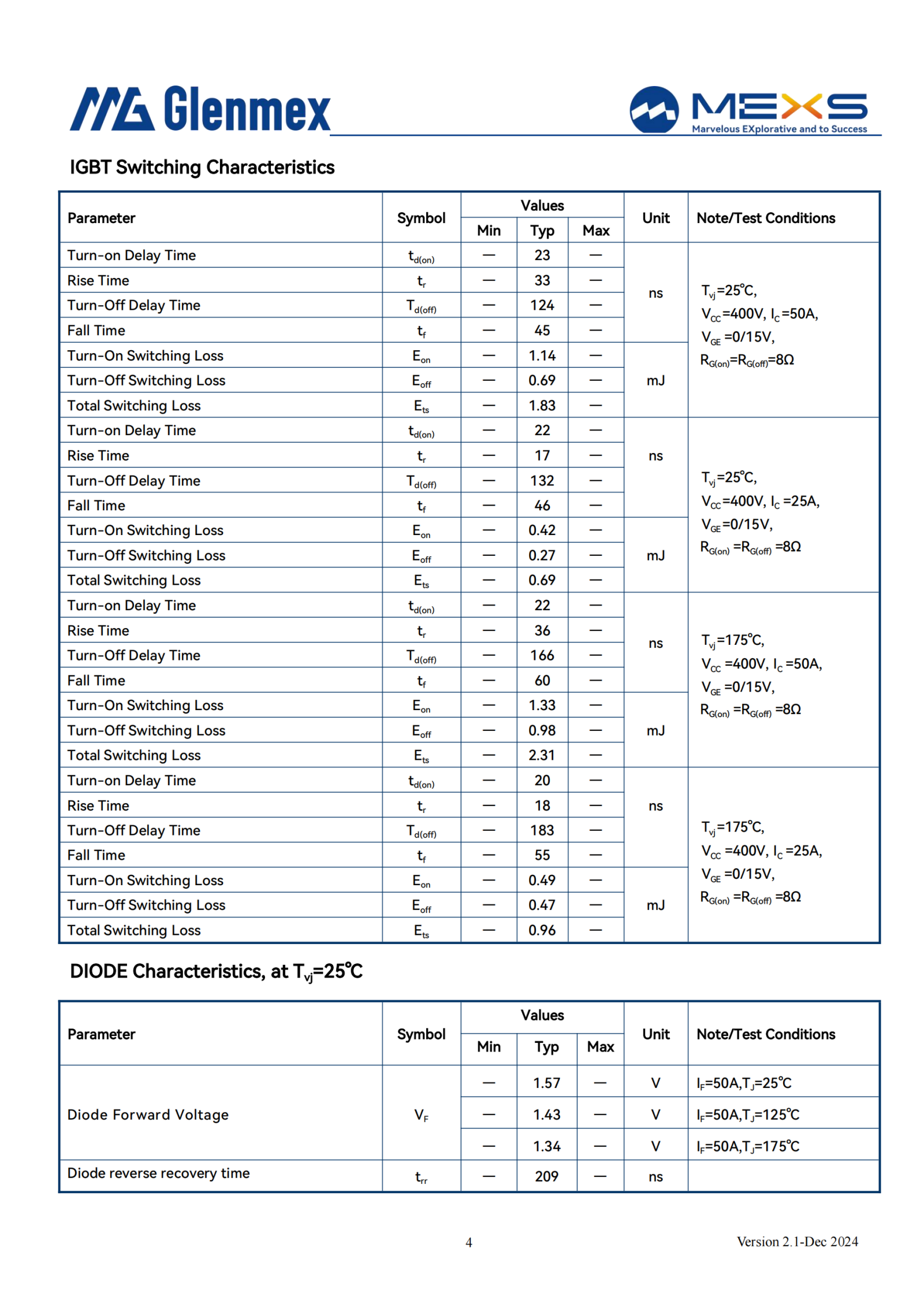

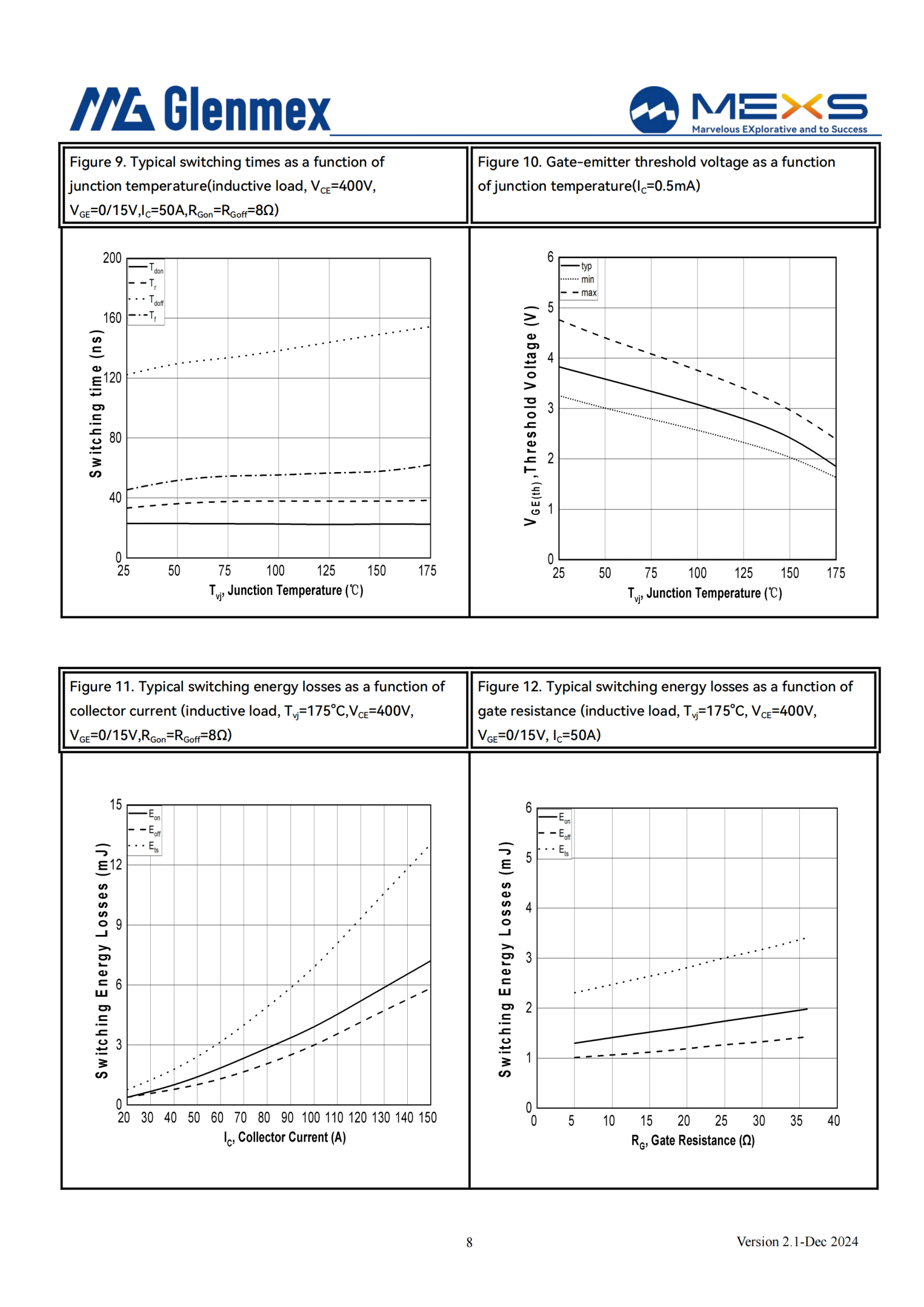

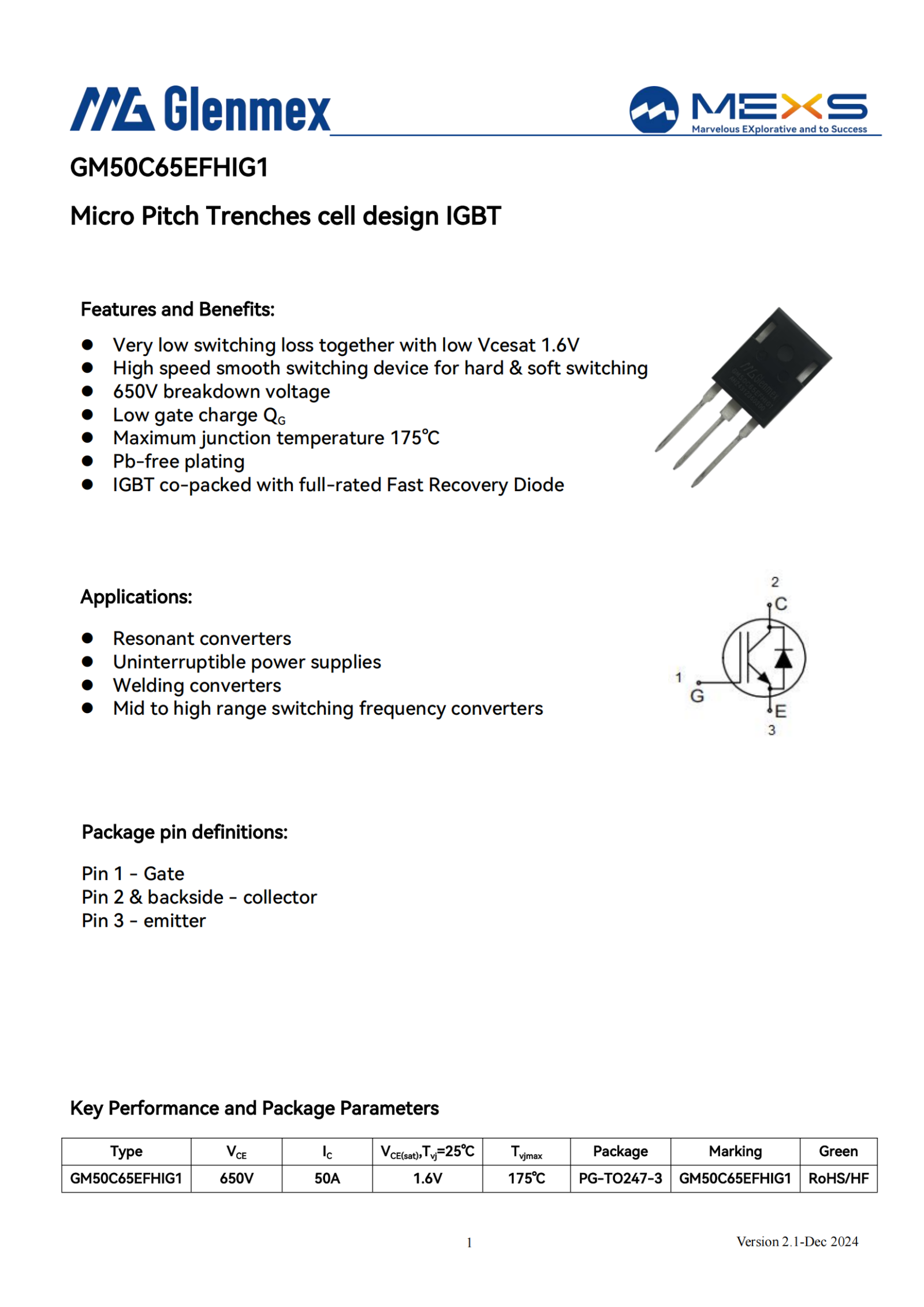

GM50C65EFHIG1

IGBT+FRD

650

50

1.60

1.75

4.0

4.8

TO-247-3L

GM50C65IFHIG1

IGBT+FRD

650

50

1.48

1.75

4.0

4.8

TO-247-4L

GM50C65NPMIG1

IGBT+FRD

650

50

1.61

1.65

5.8

6.2

TO-247IS-3L

GM75N65ENSIG1

IGBT

650

75

1.42

1.75

4.0

4.8

TO-247-3L

GM75N65INSIG1

IGBT

650

75

1.42

1.75

4.0

4.8

TO-247-4L

GM75C65EFSIG1

IGBT+FRD

650

75

1.44

1.75

4.0

4.8

TO-247-3L

GM75C65IFSIG1

IGBT+FRD

650

75

1.34

1.49

4.0

4.8

TO-247-4L

GM75C65EFHIG1

IGBT+FRD

650

75

1.65

1.80

4.0

4.8

TO-247-3L

GM75C65IFHIG1

IGBT+FRD

650

75

1.49

1.80

4.0

4.8

TO-247-4L

1200V

GM40C120EFHIG1

IGBT+FRD

1200

40

1.70

1.80

5.5

6.0

TO-247-3L
