Application overview
The compressor and fan of variable frequency air conditioning work in the range of 1Hz-120Hz, and the overall operating power range is wide, which requires the PFC scheme (two-phase interleaved BOOST) to meet the requirements of high efficiency under low power and high output voltage under high power to ensure reliable control of the motor.

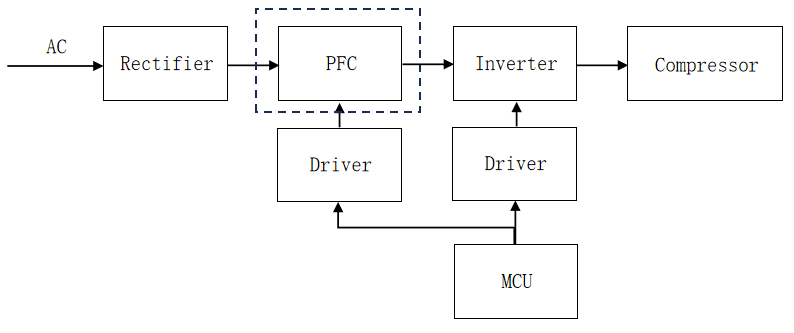

Application system diagram

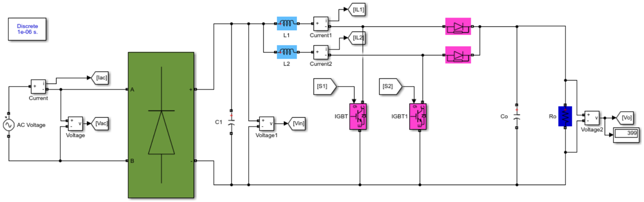

Application topology

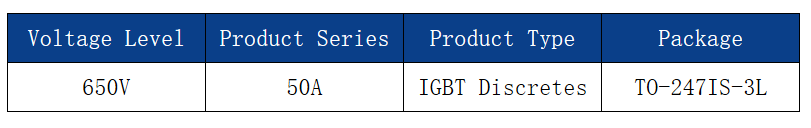

Recommended Products
